GULF CENTER UNITED Industrial Equipment Co .W.L.L.

Screening System

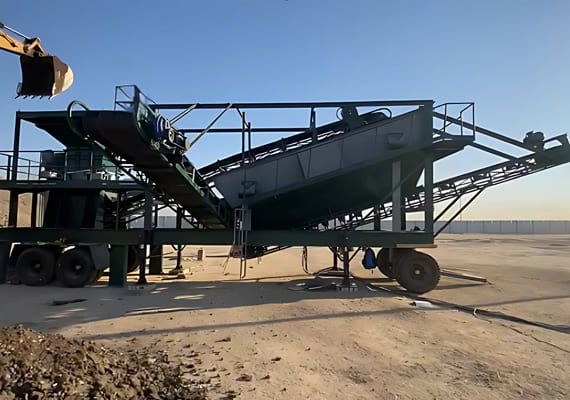

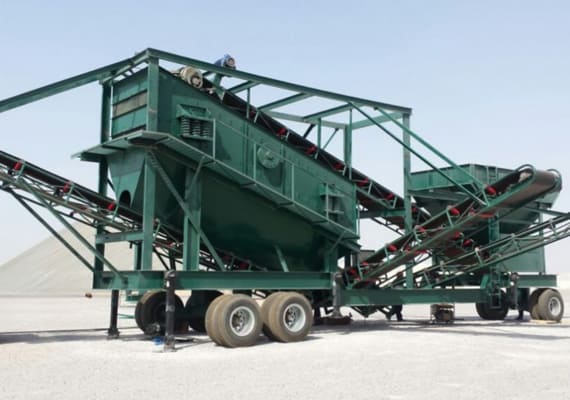

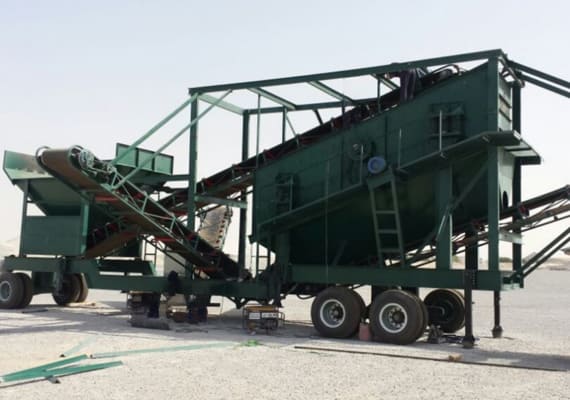

Mobile screening unit

Gulf Center Mobile Screening Units are engineered for on-site material screening with maximum flexibility and efficiency.
These mobile systems are designed for quick setup and easy transport, allowing fast deployment to any worksite across Kuwait or the GCC.

Available in multiple models and capacities, the units can be equipped with 2 to 4 separation decks, delivering excellent performance for aggregates, sand, gravel, and mineral screening.
Built to withstand demanding industrial conditions, Gulf Center’s mobile screens combine reliability, cost-efficiency, and superior output quality — all within a fully portable configuration.

High-performance mobile screening unit designed for fast deployment, efficient material separation, and reliable on-site operation across Kuwait and the GCC.

Mobile Screening unit
Model	Transport Length	Transport Width	Transport Height	Max Height	Max Width	Conveyor Height	Total Weight
MSU-21225	12,000 mm	2,510 mm	3,650 mm	4,700 mm	2,510 mm	3,450 mm	14 t
MSU-31225	12,000 mm	2,510 mm	4,900 mm	6,700 mm	2,510 mm	3,450 mm	17.5 t
MSU-41425	14,670 mm	2,510 mm	3,650 mm	4,770 mm	2,510 mm	3,450 mm	22 t
Notes: Compact and transportable design for quick site setup. Optional dual or quad deck configurations available. Designed and fabricated under ISO-certified QA/QC standards. Proudly made in Kuwait — KOC Approved.

Economical operation with low fuel and maintenance costs

Self-contained system combining screening and conveying in one compact unit

Ideal for small to medium-scale projects requiring fast setup and mobility

Independent screening and processing capability for on-site material handling

Integrated automation controls for reliable performance and easy operation

Built for Gulf conditions, ensuring long service life and minimal downtime

ISO-certified manufacturing and KOC-approved quality assurance

Mobile Screening Unit
Model	Screen Model	Conv. Model – Under Screen	Conv. Model – Over Screen	Belt Conv. Model	Capacity (t/hr)	Power (kW)
MSU-21225	2VS2045	800 × 11M	800 × 11M	650 × 8M	50 – 220	60
MSU-31225	3VS2045	800 × 11M	800 × 11M	650 × 8M	100 – 400	65
MSU-41425	4VS2060	800 × 14M	800 × 8M	500 × 8M	100 – 400	22
Notes: Available in dual, triple, or quad deck screening configurations. Designed for continuous operation under heavy-duty site conditions. Custom sizes and screen deck layouts available upon request. Manufactured in Kuwait under ISO-certified QA/QC standards and KOC approval.
